Brand Name : ZeXu
Model Number : 1/2"-24"
Certification : CE,API
Place of Origin : Hebei, China
MOQ : 1 pieces
Price : $30-$50
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 10000 pieces per week
Delivery Time : 7-15 work days
Packaging Details : Wooden Boxes
Materail : Stainless Steel
Model : 1/2"-24"
Certificates : CE,API
Scope of Application : Petroleum, chemical, metallurgical and other industries
Manufacturing Standards : ASTM/ASME B16.5
Keyword : Long Weld Neck Flange
Forged Flange Stainless Steel 304/316 Long Weld Neck flange ASTM B16.5 1/2"-24"
Processing method: high-precision CNC lathe turning, ordinary lathe fine turning, argon arc welding and other processing
Application scope: boiler pressure vessel, petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, food and other industries
Long and high neck flange:
The neck height is higher, which improves the rigidity and bearing capacity of the flange. Compared with butt welding flanges, the welding workload is large, the welding rod consumption is high, and it cannot withstand high temperature and pressure, repeated bending and temperature fluctuations, but it is more convenient for on-site installation and can omit the process of welding seam scratching, which is more popular.
Product Name | Long Weld Neck Flange |
Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Type | LWN Flange C70600( 90/10), C71500(70/30) Special Flange: According to the drawing Picture |
Materials | Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Copper Nickle: Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... |
Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement |
Brand | ZeXu |
Certificates | CE,API |
Advantages | 1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 4. More than 150 customers spread worldwide. |
![]() |

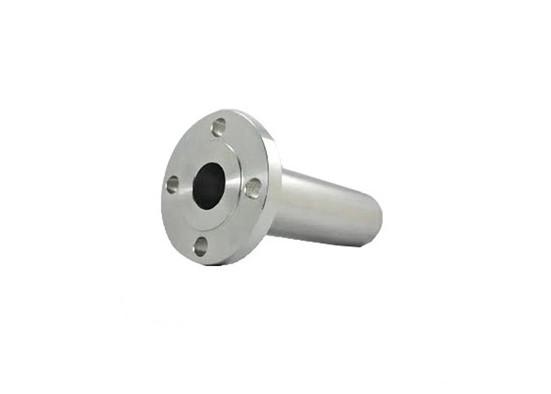

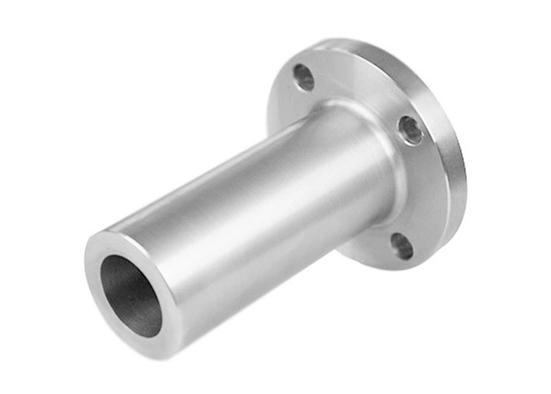

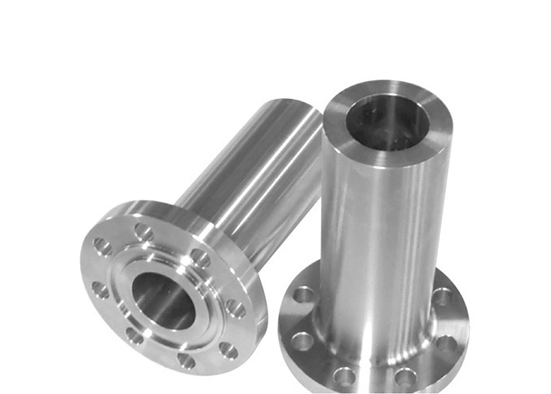

DN1500 300LB 24" Forged Steel Flanges , Long Weld Neck Flange Images |
